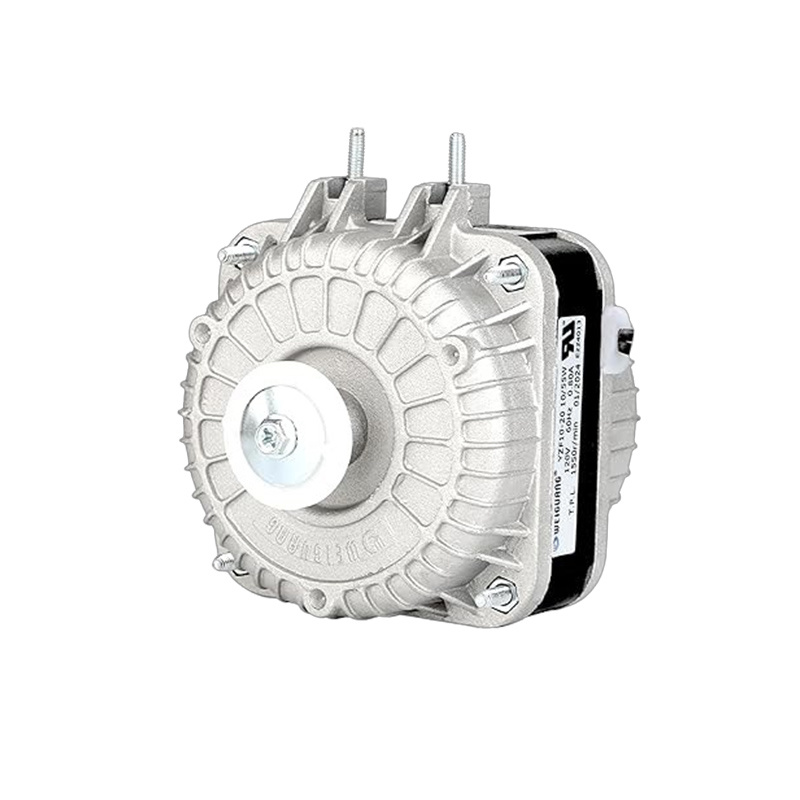

Shaded Pole Motor
The shaded-pole motor features an enhanced cooling structure with aluminum housing for efficient heat dissipation, ensuring reliable performance in low-temperature environments, ideal for refrigeration circulation systems/fans/evaporators etc.
*Tailor-made solutions available for all products.
CLASSIFICATION:
Product details
- 产品描述
-
- Commodity name: Shaded Pole Motor
The shaded-pole motor features an enhanced cooling structure with aluminum housing for efficient heat dissipation, ensuring reliable performance in low-temperature environments, ideal for refrigeration circulation systems/fans/evaporators etc.
Product Information Model Voltage（V） Frequency(Hz) Input(W) Output(W) Current(A) Speed(r/min) YZF 2-13 220-240 50/60 20 2 0.14 1300 YZF 5-13 220-240 50/60 29 5 0.20 1300 YZF 6-13 110-120 60 33 6 0.55 1550 YZF 7-20 220-240 50/60 31 7 0.23 1300 YZF 10-20 220-240 50/60 36 10 0.25 1300 110-120 60 55 10 0.80 1550 YZF 12-20 220-240 50/60 54 12 0.36 1300 YZF 16-25 220-240 50/60 60 16 0.45 1300 YZF 18-25 110-120 60 70 18 1.01 1550 YZF 18-30 220-240 50/60 70 18 0.50 1300 110-120 60 75 18 1.00 1450 YZF 25-40 220-240 50/60 90 25 0.70 1300 110-120 60 100 25 1.40 1450 YZF 34-45 220-240 50/60 110 34 0.85 1300 110-120 60 110 34 1.50 1450
keywords:
Shaded Pole Motor
